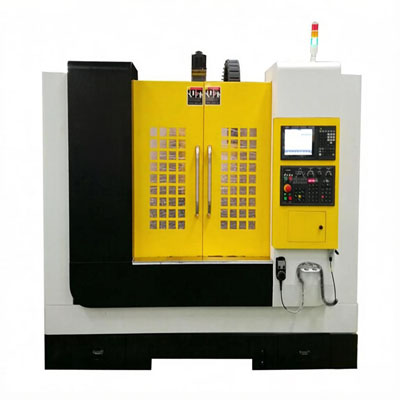

VMC-1690 Vertical Machining Center (Box Way) 3 Axis CNC Vertical Machining Center
The 3 axis CNC vertical machining center’s X-axis, Y-axis and Z-axis travel is 1600nm, 900nm and 680nm, respectively. During the machining of products, its positioning accuracy is ±0.005/300mm and repeatability is ±0.003/300. This ensures machined products of high precision. This machining center is designed for the rough processing and mold manufacturing of products.
Parameters
Model
VMC-1690
Stroke
X-axis travel (mm)
1600
Y-axis travel (mm)
900
Z-axis travel (mm)
680
Distance from spindle nose to table center (mm)
210-1010
Distance from spindle nose to table center (mm)
970
Worktable
Worktable area (mm)
1860×1000
Maximum weight on table (kg)
2000
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm)
18-7×120
Spindle
Standard spindle speed (r.p.m)
6000
Spindle horsepower (KW)
25 (18.5)
Spindle taper
BT50φ190 (belt drive)
Feed
X、Y-axis rapid feed (mm/min)
15000
Z-axis rapid feed (mm/min)
13000
Triaxial cutting feed (mm/min)
1-7000
Others
Three-axis motor power (KW)
4.5/4.5/4.5
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003/300
Control system
MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP)
1/2
Power requirement (KVA)
30
Air pressure (bar)
6-7
Machine weight (kg)
14500
Machine dimension (mm)
5100×3400×3200
Components display of vertical machining centers (3 axis box guideways)
Mechanical spindle, direct drive
Control system and motor
