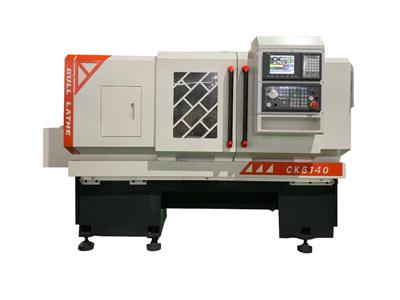

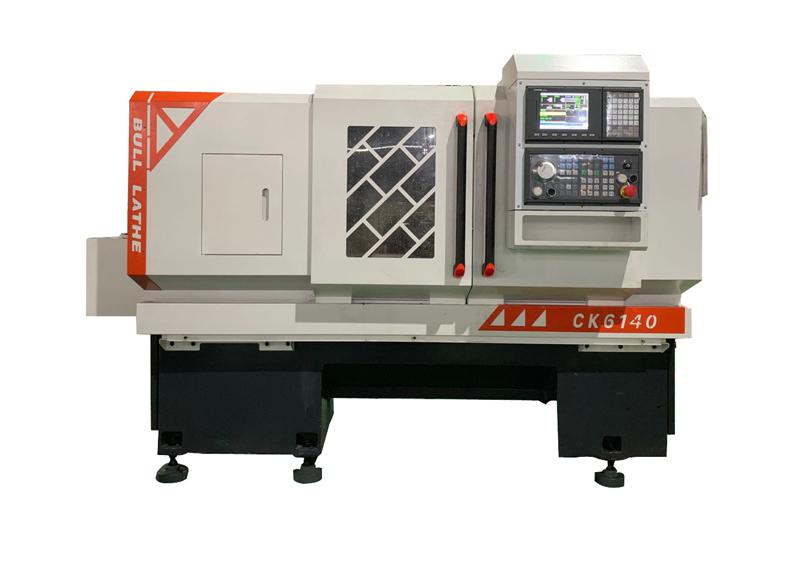

CNC Turning Center, Series CK6140
This machine is suitable for processing all kinds of metal materials, various types of semi-finished accessories, for example bar, pipe material, casting, forging, casting parts and so on.
Parameters| Items | Specifications |
| Stroke | |
| Max. swim over bed | φ360mm |
| Max. swim over carriage | φ150mm |
| Max. length of work piece | 450mm |
| Spindle | |
| Range of spindle speed | 150-2500rpm |
| Spindle bore | φ40mm |
| Spindle drawn tube diameter | φ31mm |
| Taper of spindle bore | MT5 |
| Others | |
| Stations of tool carrier | 4 |
| Max. size of tool post | 20mmX20mm |
| Min. setting unit of motor | (Z) 0.001mm, (X) 0.001mm |
| Moving speed of post | (Z) 8m/min, (X) 4m/min |
| Taper of tailstock quill | MT4 |
| Max. range of tailstock quill | 100mm |
| Motor power | 4kW |
| Packing size | 1820mm X 1100mm X 1550mm |
| Net weight/gross weight | 1000/1200kg |
