High Speed Vertical Machining Center (3 Linear Guide Way)
High Speed Vertical Machining Center (3 Linear Guide Way)
The CNC vertical machining center (3 axis linear guideways) places an emphasis on machining precision to guarantee the smoothness and the flatness of the cutting face. Its three axes adopt linear guideway, making it suitable for finish machining. The surface of the finished product is characterized by finer tool lines.
CNC vertical machining centers (3 axis linear guideways) produced by BOS CNC
High Speed Vertical Machining Center,Series V-640X-axis travel:600mm
Y-axis travel:400mm
Z-axis travel :450mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:350kg
Spindle speed (standard): 10000 rpm
High Speed Vertical Machining Center,Series V-650X-axis travel:600mm
Y-axis travel:500mm
Z-axis travel :550mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:350kg
Spindle speed (standard): 10000 rpm
High Speed Vertical Machining Center,Series V-850X-axis travel:800mm
Y-axis travel:500mm
Z-axis travel :500mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:600kg
Spindle speed (standard): 10000 rpm
High Speed Vertical Machining Center,Series V-1160X-axis travel:1100mm
Y-axis travel:600mm
Z-axis travel :600mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:800kg
Spindle speed (standard): 8000 rpm
High Speed Vertical Machining Center,Series V-1370X-axis travel:1300mm
Y-axis travel:700mm
Z-axis travel :700mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:850kg
Spindle speed (standard): 8000 rpm
Samples machined by CNC vertical machining center

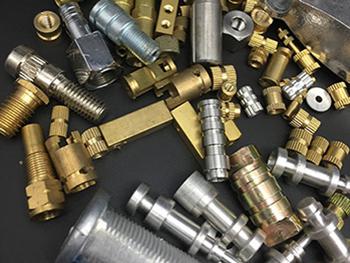

Hardware accessories by CNC vertical machining center
Precision workpiece by CNC vertical machining center
Features of CNC vertical machining center (3 axis linear guideway)
Spindle has a shorter front end. So the tool seldom shakes during the operating, reducing tool wear.
3 axes adopt linear guideway as the support, featuring fast displacement. This greatly cuts down the machining time.
The high stability tool changer reduces the non-processing time.
CNC vertical machining center adopts rear chip removal structure. The chip is removed from the back of the machine, of convenient cleaning and uneasy oil leakage.
For these components, the control system can be changed according to client needs. Our tool storage can be assembled with more tools. And please click the components for detailed information.
