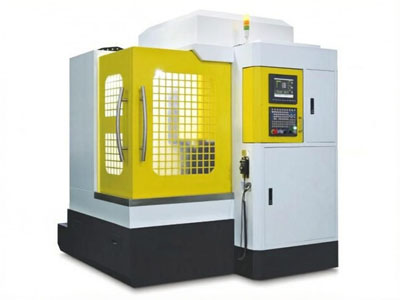

This CNC drilling and milling machine is equipped with 3 spindle speeds: 18000r.p.m, 24000r.p.m and 30000r.p.m. Users can choose the required spindle speed based on their specific needs, and thus, improve the working efficiency. This machine has a size of 2300x2400x2550mm and a weight of 4200kg.
Parameter
Model
EMC-870
Lejang
Perjalanan paksi-X (mm)
Perjalanan paksi-Y (mm)
Perjalanan paksi-Z (mm)
700/800/280
Jarak dari hidung gelendong ke pusat meja (mm)
50-400
Meja kerja
Luas meja kerja (mm)
800x700
Berat maksimum di atas meja (kg)
500
T-slot (width – number of slot x spacing) （mm）
5-18
Gelendong
Kelajuan gelendong standard （r.p.m）
18000/24000/30000
Tirus gelendong
ER32/BT30
Spindle motor power (KW)
5.5/7.5
Suapan
Suapan pantas triaksial (mm/min)
16000
Triaxial cutting feed (mm/min)
1-6000
Lain-lain
Ketepatan kedudukan (mm)
±0.005/300
Kebolehulangan (mm)
±0.003/300
Berat mesin (kg)
4200
Dimensi mesin (mm)
2300x2400x2550
Parts of CNC mill machine
Sistem kawalan dan motor
Direct drive motor spindle
Turntable type tool magazine, capable of holding 12 tools
Linear guideway runs in a stable manner with a high machining precision
Sistem kawalan dan motor
Direct drive motor spindle
