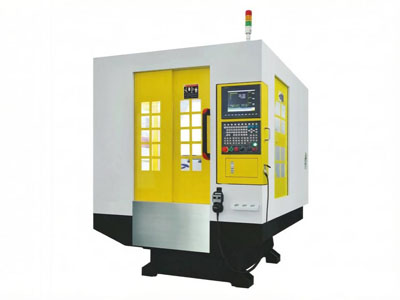

5-Axis CNC Drilling and Milling Machine, MS-640 CNC Machinery
The 5 axis CNC drilling and milling machine is a CNC machining equipment with 5 processing heads. Its X-axis travel, Y-axis travel and Z-axis travel are 600nm, 400nm and 300nm, respectively, with a positioning accuracy of ±0.005/300mm. This makes it applicable to the batch processing of hardware, watch cases, decorations, stone setting and more.
Parameters of 5-axis CNC drilling and milling machine, MS-640 type
Model
MS-640
X ekseni stroku (mm)
X-axis travel mm
600
Y-axis travel mm
400
Z-axis travel mm
300
Spindle nose to the table mm
330
Workbench
Workbench area mm
700x400
Maximum load kg
200
Tool chuck
ER20-ER25
X、Y ekseni hızlı ilerleme (mm/dak)
Three-axis fast-moving speed m/min
15000-30000
Cutting feed rate mm/min
1-7000
Standart iş mili hızı (dev/dak)
Spindle speed r.p.m
24000-48000
Spindle motor power kw
1.5/2.2/3.0
Other
positioning accuracy mm
±0.005/300
Repeatability mm
±0.005
Mechanical weight kg
3200
Dimensions mm
1650x2400x2500
5-axis CNC machine parts
Kontrol sistemi ve motor
Motor spindle, direct drive
Linear guideway operates in a stable manner, features a high processing precision.
Kontrol sistemi ve motor
Motor spindle, direct drive
